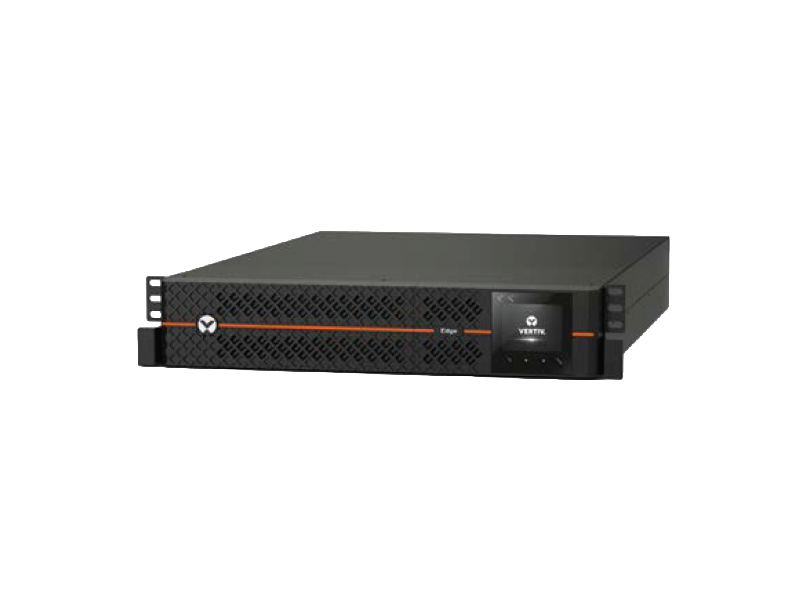

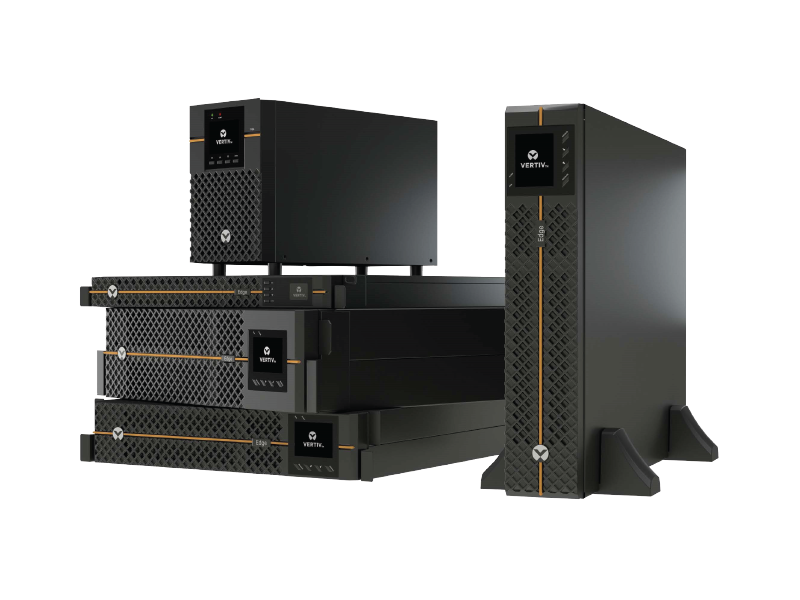

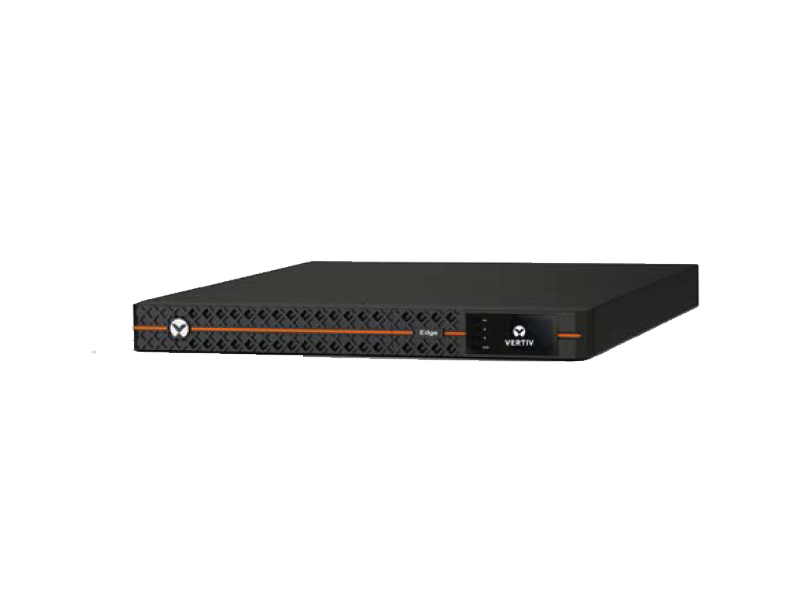

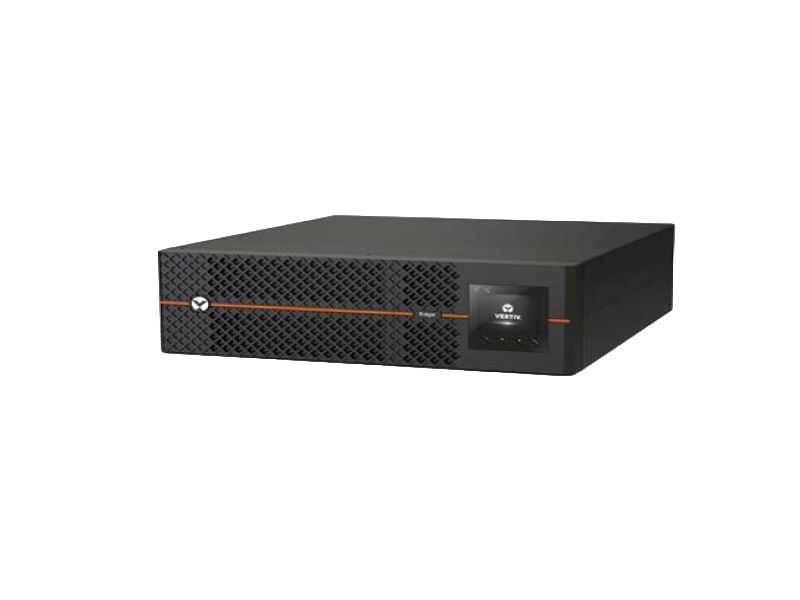

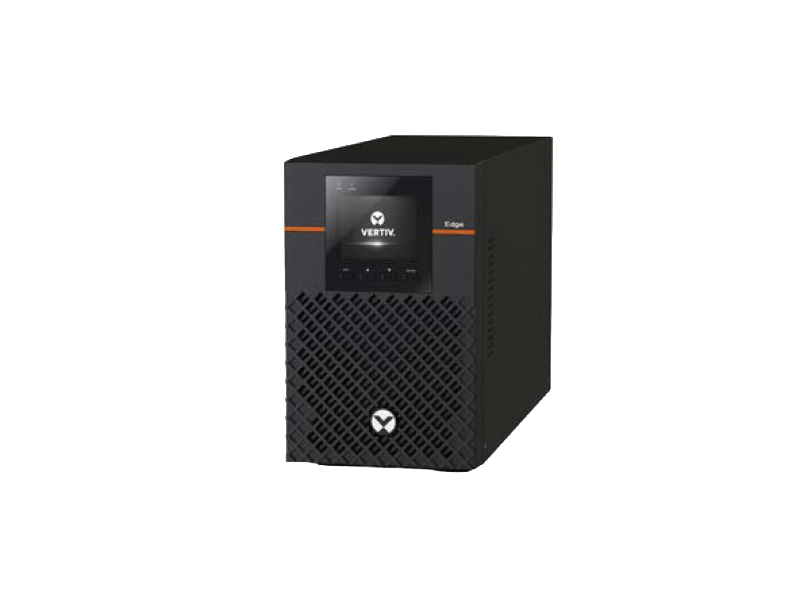

Vertiv Edge UPS is a reliable and efficient line-interactive sinewave UPS solution designed to protect servers, networking equipment, and critical IT devices in distributed and Edge IT environments. Available in tower, rack/tower, and rack-mount form factors, with models ranging from 500VA to 3000VA, Vertiv Edge offers flexible deployment options to suit different infrastructure needs. With a 0.9 output power factor, controllable outlets, extended runtime options, and compact 1U, 2U, and short-depth 3U configurations, it provides dependable power protection, optimized runtime, and cost-effective performance for modern IT operations.
• High output PF=0.9 to maximize available power and protect more equipment
• High efficiency, up to 98% in line mode, to deliver energy savings
• 1U, 2U, 3U, tower, rack/tower form factors, with power ratings from 500VA to 3000VA, to address a broad range of power requirements
• Advanced AVR protection with 2x boost and 1x buck tap to protect the battery by smoothing out spikes, sags and brownouts
• Color graphic LCD display
• Add up to 6 extended run battery cabinets to increase runtime
• External battery cabinets with auto-detection
• Rack/tower 3kVA model with short depth for flexible installation
• “Green mode” operation: in battery mode with small loads, the UPS will automatically shut down to protect batteries, optimize energy savings
• Programmable outlets to disable non-critical loads, optimize battery runtime
• Input breaker device for additional protection to the load in worst case failures
• Smart fan speed control for lower audible noise
• Remote connectivity via network interface or serial connection to monitor power consumption and configure user-defined alert notifications to prevent downtime
• Extend battery life with deep discharge protection
• RoHS and REACH compliant
