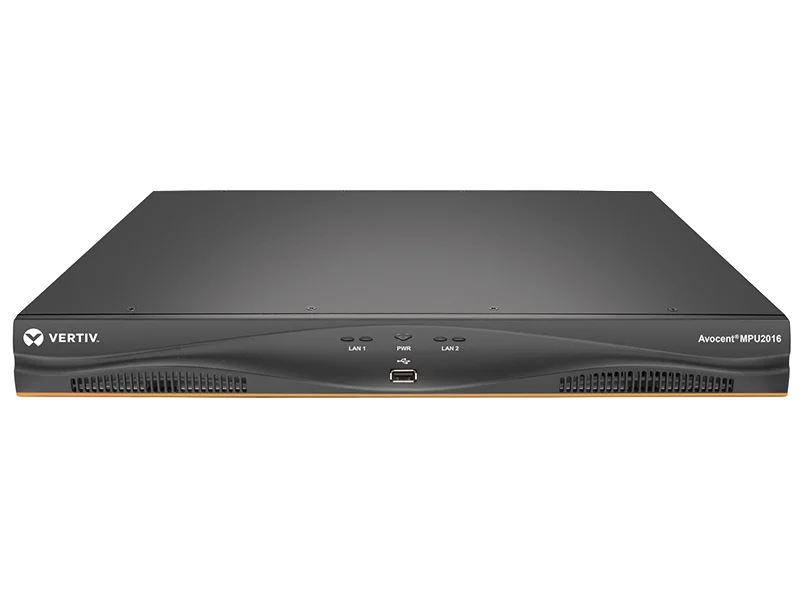

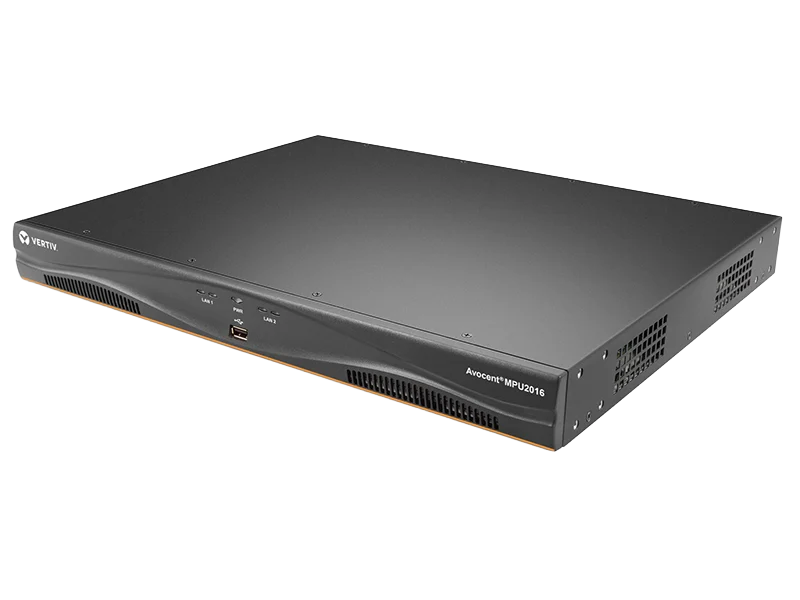

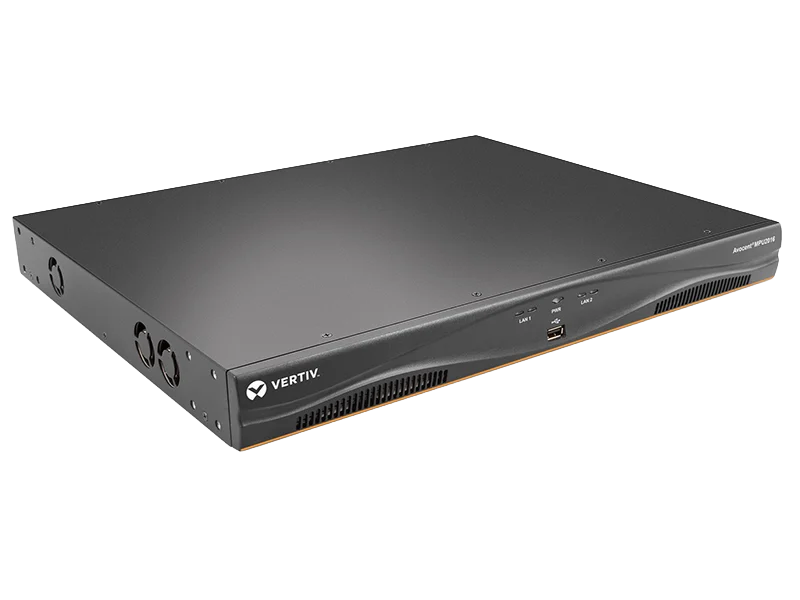

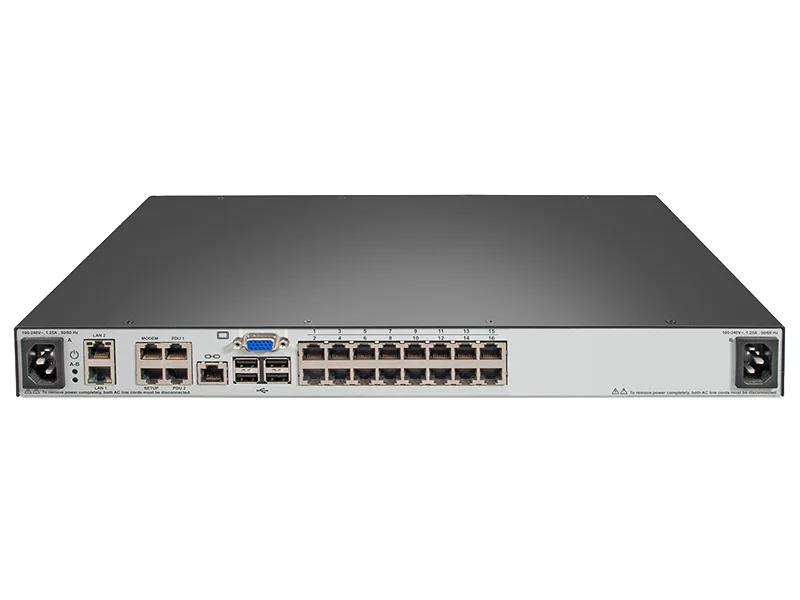

Vertiv Avocent AV Series KVM Switch is designed to provide secure, streamlined, and efficient access to server resources across small data centers, remote offices, and branch environments. By enabling centralized KVM access, it helps IT teams monitor, troubleshoot, and manage connected servers with greater convenience, reducing the need for constant on-site support. The solution supports user access control, LDAP authentication, HTML5 Viewer access, virtual media, and optional smart card or CAC-based two-factor authentication to strengthen security and improve management flexibility. With local port access, graphical multilingual OSD, space-saving CAT-5 cabling, and intelligent server naming, the Avocent AV Series helps simplify daily server administration while supporting reliable control across distributed IT infrastructures.
• Grant access to specified users or implement LDAP directory authentication
• Limit KVM access to specific targets on the switch
• Enable smart card or CAC readers to support two factor authentication
• Support HTML5 Viewer for more secured and Java-free KVM access
Virtual Media support allows servers to access storage media attached to the KVM, enabling out-of-band file transfers and OS patch deployments.
Support for virtual media, USB keyboards and mice.
Advanced, graphical On-Screen Display eases system configuration and server selection.
CAT-5, thin cabling saves space in the rack and allows up to a 30 meter distance between the server and the switch.
Server interface modules and integrated access cables automatically assign and retain unique server names for each attached server.
