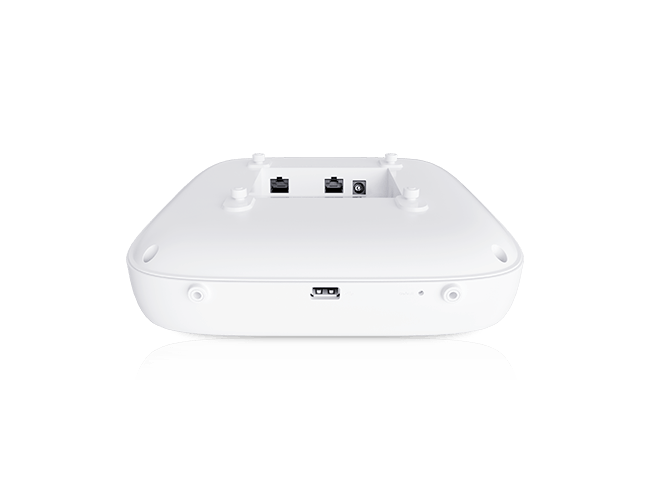

Huawei AirEngine 6776-58TI is a Wi-Fi 7 (802.11be) indoor IoT AP ideal for indoor coverage scenarios like mobile offices, education, healthcare, and shopping malls/supermarkets. It can flexibly work in 2.4 GHz + 5 GHz mode or 2.4 GHz + 5 GHz + 6 GHz mode. Designed with eight spatial streams, the AP delivers a peak data rate of 7.89 Gbit/s. AirEngine 6776-58TI has built-in smart antennas to enable always-on signals for users, and draws on Wi-Fi 7 innovations to redefine wireless user experience.
Smart Antennas
Built-in dual-band co-planar smart antennas suppress interference automatically, double signal strength at the same location, and create stable wireless coverage without any coverage holes.
Wi-Fi Shield
Innovative Wi-Fi Shield technology ensures that only the target terminal can accurately receive data packets, while non-target terminals cannot, preventing eavesdropping by malicious users.
IoT expansion
Two built-in IoT card slots, one USB port, and BLE 5.4 adapt to multiple IoT protocols, such as RFID and ZigBee, enabling access of diversified IoT terminals.
*Note: Software upgrade is required to support IoT use cases
| Dimensions (H x W x D) | 61 mm x 220 mm x 220 mm |
| Power Input | DC: 43.2 V to 57.6 V |
| PoE power supply: in compliance with 802.3bt/at (dual PoE inputs for hot backup) | |
| Maximum Number of Users | 1800 |
| Note: The actual number of users varies according to the environment. | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in smart antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2, 5 GHz: 4×4:4, 6 GHz: 2×2:2; |
| 2.4 GHz: 4×4:4, 5 GHz: 4×4:4 | |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax/be |
| Maximum Rate | 7.89 Gbit/s |
