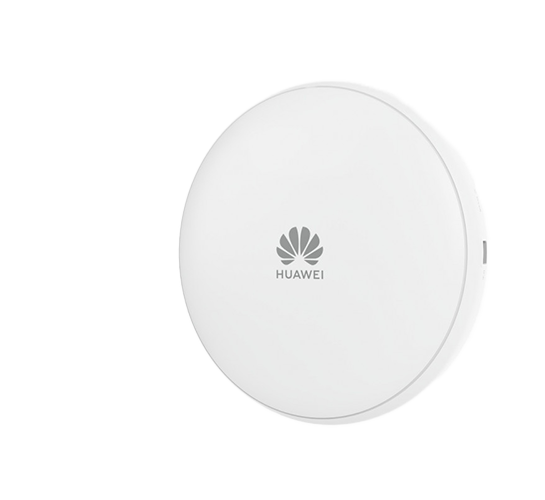

Huawei AirEngine 6776-56TP is a next-generation indoor Access Point (AP) in compliance with Wi-Fi 7 (802.11be). It can simultaneously provide services on 2.4 GHz (2×2 MIMO), 5 GHz (2×2 MIMO), and 5 GHz (4×4 MIMO) radios, supporting a total of 8 spatial streams and achieving a device rate of up to 7.89 Gbps. The AP is empowered by brand-new Wi-Fi 7 technologies and is equipped with built-in smart antennas to enable always-on Wi-Fi signals for users, significantly enhancing users’ wireless network experience. These strengths make the AirEngine 6776-56TP ideal for densely populated scenarios such as mobile offices, schools, and stadiums.
Smart Antennas
Dual-band co-planar smart antennas suppress interference automatically and double signal strength, realizing high-quality wireless coverage with zero blind spots.
Triple Radios
A triple-radio design — 1 x 2.4 GHz and 2 x 5 GHz — supports 50% more concurrent users compared to dual-band APs and delivers a device rate of up to 7.89 Gbps.
PoE Out
The PoE Out capability allows the AP to supply PoE power to low-energy powered devices (PDs), requiring no local power supply or power cables.
| Dimensions (Diameter x Height) | Φ220 mm x 45 mm |
| Power Input | DC: 43.2–57.6 V |
| PoE power supply: in compliance with IEEE 802.3bt/at. | |
| Maximum Number of Users | 1800 (600 per radio) |
| Note: The actual number of users varies according to the environment. | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in smart antennas |
| MIMO Performance | 2.4 GHz: 2×2; 5 GHz: 2×2; 5 GHz: 4×4 |
| Radio Protocol | 802.11a/b/g/n/ac/ax/be |
| Maximum Rate | 7.89 Gbps |
