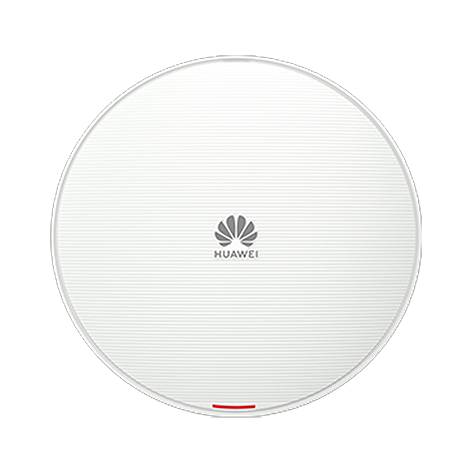

AirEngine 6761-21T is a next-generation indoor Wi-Fi 6 access point designed to deliver high-speed, high-quality wireless connectivity for demanding network environments. Built with triple-band radios, including one 2.4 GHz band and two 5 GHz bands, it provides a combined wireless rate of up to 6.575 Gbit/s to support bandwidth-intensive applications and high-density user access. Its built-in Smart Antennas help enhance wireless coverage, improve signal quality, and provide a more stable network experience across indoor spaces. Designed for environments that require strong performance and reliable connectivity, AirEngine 6761-21T is well suited for enterprise offices, educational institutions, stadiums, and other large-scale venues where fast, consistent, and efficient wireless access is essential.
Dual-band co-planar Smart Antennas suppress interference automatically, double signal strength, and provide 20% wider coverage, realizing high-quality wireless coverage with zero blind spots.
A triple-band radio design — 1 x 2.4 GHz and 2 x 5 GHz — supports 50% more concurrent users compared to dual-band APs.
Huawei’s cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs.
| Dimensions (D x H) | 220 mm x 50 mm |
Power Input | DC: 12 V ±10% |
PoE power supply: In compliance with 802.3at. | |
Maximum Power Consumption | 21.20 W (excluding USB) |
Note: The actual maximum power consumption depends on local laws and regulations. | |
Maximum Number of Users | ≤ 1536 |
Note: The actual number of users varies according to the environment. | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2; 5 GHz: 2×2:2; 5 GHz: 4×4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | 6.575 Gbit/s |
