AirEngine 6761-21 and AirEngine 6761-21E are indoor Wi-Fi 6 (802.11ax) Access Points (APs) designed for high-density scenarios such as small and midsize enterprise offices, education institutions, and stadiums.
AirEngine 6761-21 features built-in Dynamic-Zoom Smart Antennas that automatically adjust the coverage angle to optimize for high- and low-density scenarios. Both APs support 4 x 4 Multiple-Input Multiple-Output (MIMO), and can simultaneously deliver services on both the 2.4 GHz and 5 GHz frequency bands, achieving a rate of up to 3.55 Gbit/s.
Dynamic-Zoom Smart Antennas
AirEngine 6761-21 has built-in dynamic-zoom smart antennas that can flexibly work in omnidirectional or high-density coverage mode. The former mode promises wider coverage, while the latter mode maximizes performance and optimizes user experience in dense environments.
Independent Scanning RF
Independent Radio Frequency (RF) scanning enhances the precision of intelligent roaming. It also boosts the efficiency of scanning for, and locating, sources of interference, along with locating Wi-Fi. All of this, without affecting services.
Cloud Management
Huawei’s cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs.
| Dimensions (Diameter x Height) | Φ220 x 53 mm |
| Power Input | DC: 43.2–57.6 V |
| PoE power supply: In compliance with 802.3at | |
| Maximum Power Consumption | 22 W (excluding USB) |
| Note: The actual maximum power consumption depends on local laws and regulations | |
| Maximum Number of Users | ≤ 1024 |
| Note: The actual number of users varies according to the environment | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | AirEngine 6761-21: Built-in Dynamic-Zoom Smart Antennas |

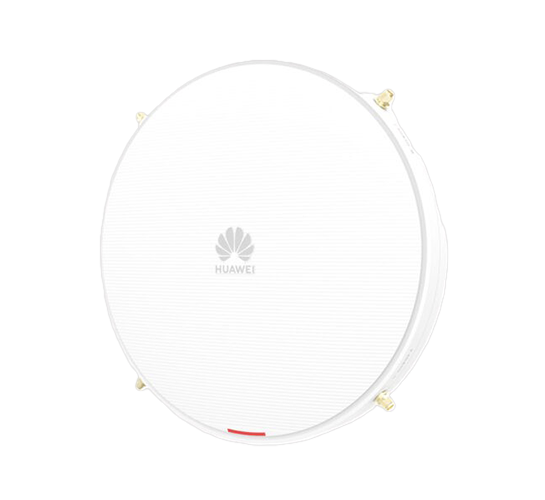

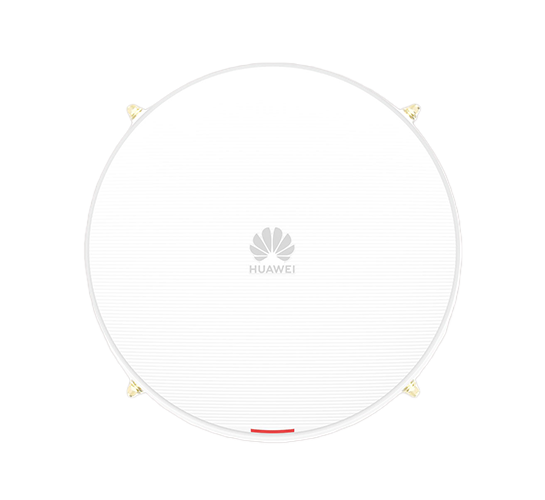

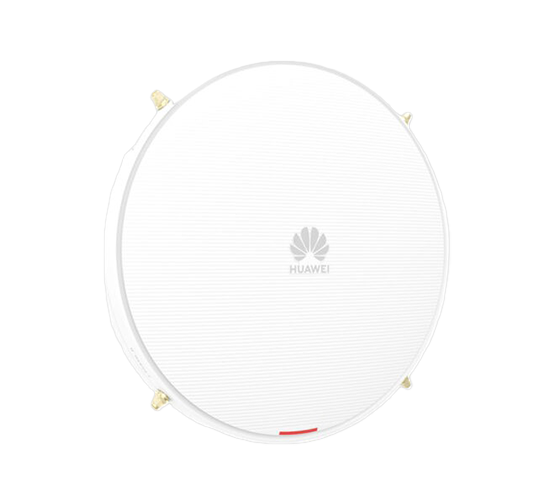

| AirEngine 6761-21E: External antennas | |
| MIMO:Spatial Streams | 2.4 GHz: 4 x 4:4, 5 GHz: 4 x 4:4 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | 3.55 Gbit/s |
