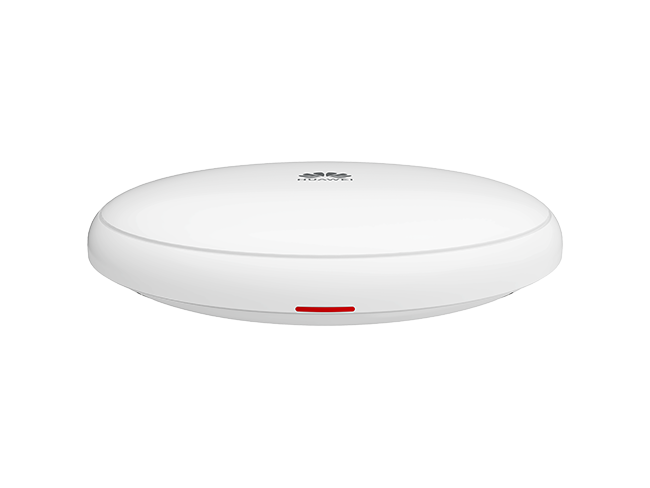

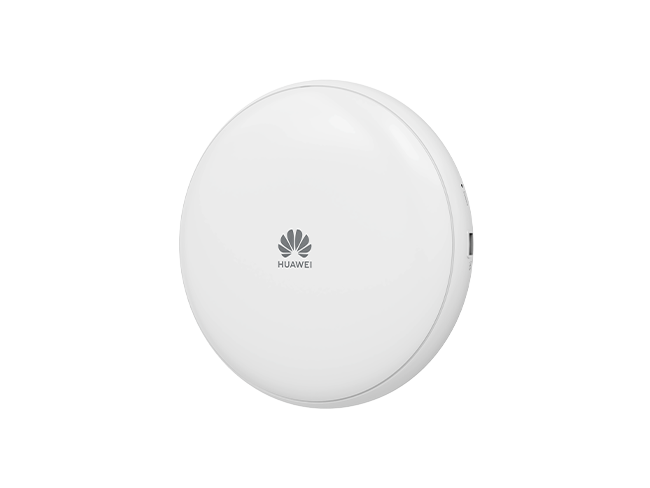

Huawei AirEngine 5776-57 is a next-generation Wi-Fi 7 indoor access point designed to deliver high-speed, reliable, and flexible wireless connectivity for indoor coverage scenarios such as mobile offices and hospitals. Compliant with the Wi-Fi 7 standard, it supports flexible dual-band operation across 2.4 GHz, 5 GHz, and 6 GHz frequency combinations, including 2.4 GHz + 5 GHz, 2.4 GHz + 6 GHz, and 5 GHz + 6 GHz modes. With 2×2 MIMO on each supported band, four spatial streams, and a peak data rate of 7.20 Gbit/s, the AirEngine 5776-57 provides strong capacity and performance for modern digital environments. Its built-in Smart Antennas help maintain always-on signal coverage, improve connection stability, and enhance the overall user experience. By combining Wi-Fi 7 innovations with intelligent antenna technology, Huawei AirEngine 5776-57 offers a future-ready wireless solution for organizations that require efficient, consistent, and high-quality indoor connectivity.
Built-in dual-band co-planar smart antennas suppress interference automatically, double signal strength at the same location, and create stable wireless coverage without any coverage holes.
The AP supports four spatial streams and can flexibly work in 2.4 GHz (2×2 MIMO) + 5 GHz (2×2 MIMO) mode, 2.4 GHz (2×2 MIMO) + 6 GHz (2×2 MIMO), or 5 GHz (2×2 MIMO) + 6 GHz (2×2 MIMO) mode.
Multi-link operation (MLO), 4096-QAM modulation, and four spatial streams streamline data transmission and deliver a peak data rate of 7.20 Gbit/s.
| Dimensions (D x H) | 220 mm x 45 mm |
Power Input | DC: 12 V ± 10% |
PoE power supply: in compliance with 802.3at/af | |
Maximum Number of Users | 1200 |
Note: The actual number of users varies according to the environment. | |
| Antenna Type | Built-in smart antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2, 5 GHz: 2×2:2 2.4 GHz: 2×2:2, 6 GHz: 2×2:2 5 GHz: 2×2:2, 6 GHz: 2×2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax/be |
| Maximum Rate | 7.20 Gbit/s |
