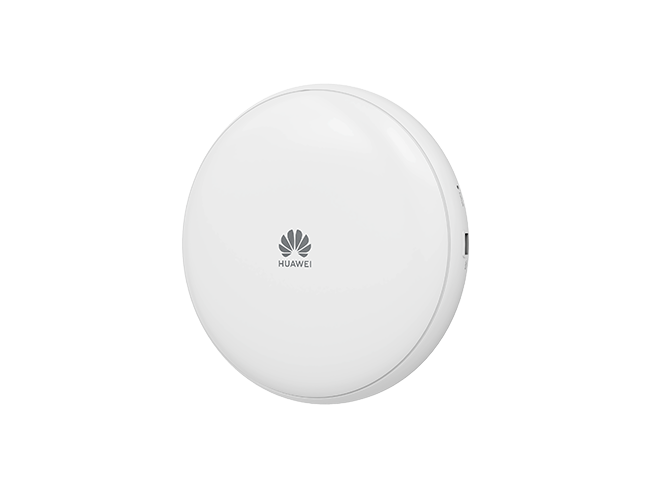

Huawei AirEngine 5776-56T & 5776-57T are next-generation Wi-Fi 7 (802.11be) indoor APs ideal for high-density coverage scenarios like mobile offices, education, venues, and conference rooms.
AirEngine 5776-56T provides services simultaneously on 2.4 GHz (2×2 MIMO), 5 GHz (2×2 MIMO), and 5 GHz (2×2 MIMO) frequency bands, supports six spatial streams, and delivers a peak data rate of 5.01 Gbit/s. AirEngine 5776-57T provides services simultaneously on 2.4 GHz (2×2 MIMO), 5 GHz (2×2 MIMO), and 6 GHz (2×2 MIMO) frequency bands, supports six spatial streams, and delivers a peak data rate of 7.20 Gbit/s.
AirEngine 5776-56T and AirEngine 5776-57T have built-in smart antennas to enable always-on signals for users, and draw on Wi-Fi 7 innovations to redefine wireless user experience.
Built-in dual-band co-planar smart antennas suppress interference automatically, double signal strength at the same location, and create stable wireless coverage without any coverage holes.
Tri-radio design — namely, 2.4 GHz + 5 GHz + 5 GHz on AirEngine 5776-56T and 2.4 GHz + 5 GHz + 6 GHz on AirEngine 5776-57T — supports 50% more concurrent users.
Multi-link operation (MLO), 4096-QAM modulation, and six spatial streams streamline data transmission and deliver a peak data rate of 5.01 Gbit/s (AirEngine 5776-56T) or 7.89 Gbit/s (AirEngine 5776-57T).
| AirEngine 5776-56T | AirEngine 5776-57T | |
| Dimensions (D x H) | 220 mm x 45 mm | 220 mm x 45 mm |
| Power Input | DC: 43.2 V to 57.6 V PoE power supply: in compliance with 802.3at/af | DC: 12 V ± 10% PoE power supply: in compliance with 802.3at/af |
| Maximum Number of Users | 1800 Note: The actual number of users varies according to the environment. | 1800 Note: The actual number of users varies according to the environment. |
| Antenna Type | Built-in smart antennas | Built-in smart antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2, 5 GHz-L: 2×2:2, 5 GHz-H: 2×2:2 | 2.4 GHz: 2×2:2, 5 GHz: 2×2:2, 6 GHz: 2×2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax/be | 802.11a/b/g/n/ac/ac Wave 2/ax/be |
| Maximum Rate | 5.01 Gbit/s | 7.89 Gbit/s |
