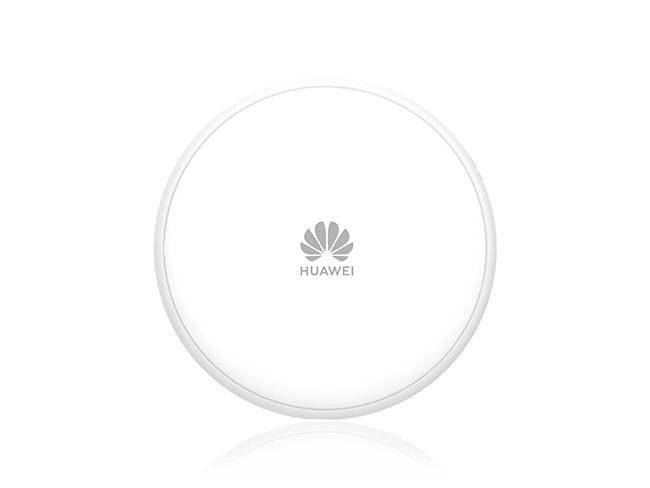

Huawei AirEngine 5776-26 and AirEngine 5776-26-T are next-generation indoor access points designed to deliver high-performance wireless connectivity through Wi-Fi 7 technology. Supporting dual-band operation across 2.4 GHz and 5 GHz radios, these APs provide 2×2 MIMO on the 2.4 GHz band and 4×4 MIMO on the 5 GHz band, offering a total of six spatial streams and data rates of up to 6.45 Gbps. Built with Wi-Fi 7 innovations, they help improve network speed, capacity, and user experience across modern indoor environments. With reliable performance and advanced wireless capabilities, the AirEngine 5776-26 series is well suited for small and midsize enterprise offices, educational institutions, retail stores, and other indoor coverage scenarios that require stable, efficient, and high-quality connectivity.
Dual-band co-planar smart antennas suppress interference automatically and double signal strength, realizing high-quality wireless coverage with zero blind spots.
Innovative Wi-Fi Shield technology ensures that only the target terminal can accurately receive data packets, while non-target terminals cannot, preventing eavesdropping by malicious users.
The AP supports an external USB dongle for IoT expansion. It also comes with built-in BLE 5.4 and NearLink SLE 1.0 to flexibly support various IoT protocols such as RFID and Zigbee after a software upgrade.
| Dimensions (D x H) | 220 mm x 45 mm |
Power Input | DC: 12 V ± 10% |
PoE power supply: in compliance with 802.3at/af | |
Maximum Number of Users | 1200 (600 per radio) |
Note: The actual number of users varies according to the environment. | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in smart antennas |
| MIMO Performance | 2.4 GHz: 2×2; 5 GHz: 4×4 |
| Radio Protocols | 802.11a/b/g/n/ac/ax/be |
| Maximum Rate | 6.45 Gbps |
