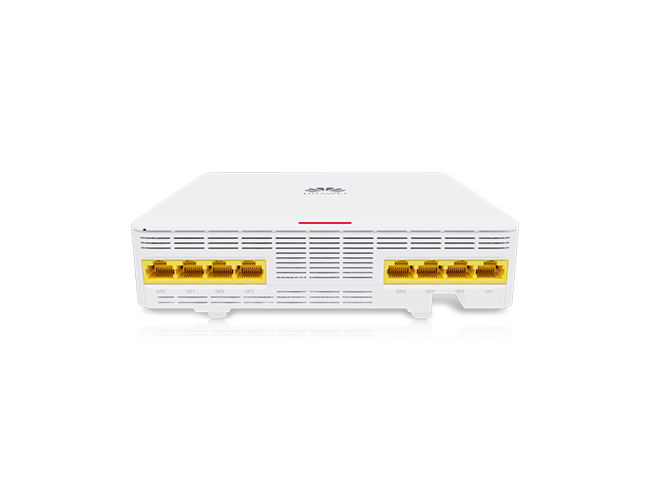

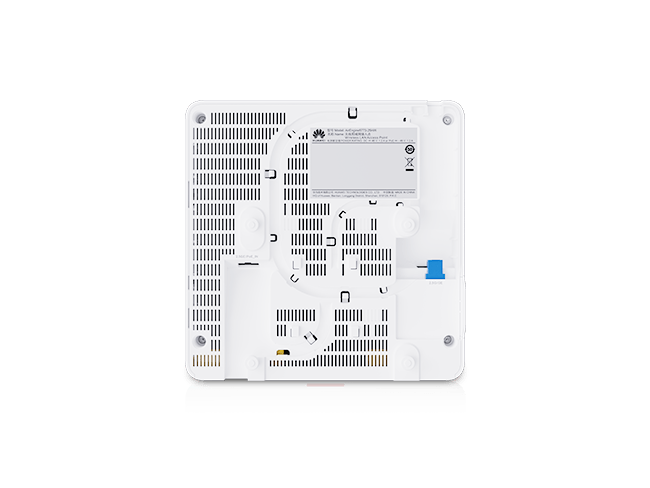

Huawei AirEngine 5773-25HW is a Wi-Fi 7 wall plate access point designed to provide reliable, high-performance indoor wireless coverage for environments such as dormitories, hotels, and other room-based deployment scenarios. Supporting simultaneous services on 2.4 GHz and 5 GHz frequency bands with 2×2 MIMO on each band, the AP delivers four spatial streams and a peak data rate of 3.57 Gbit/s. Built with Wi-Fi 7 innovations, it helps improve wireless speed, efficiency, and user experience in high-demand indoor environments. The AirEngine 5773-25HW also supports Huawei’s hybrid cable and simplified network solution, enabling more flexible deployment while helping protect existing infrastructure investment. With one 2.5GE optical uplink port, one 2.5GE electrical uplink port, and eight GE downlink ports, it provides strong connectivity options for both wireless and wired access needs.
| Dimensions (H x W x D) | 185 mm x 185 mm x 42 mm |
Power Input | DC: 43.2 V to 57.6 V |
PoE power supply: in compliance with 802.3bt/at | |
| Operating Temperature | 0°C to +40°C |
| Antenna Type | Built-in smart antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2, 5 GHz: 2×2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ax/be |
| Maximum Rate | 3.57 Gbit/s |
