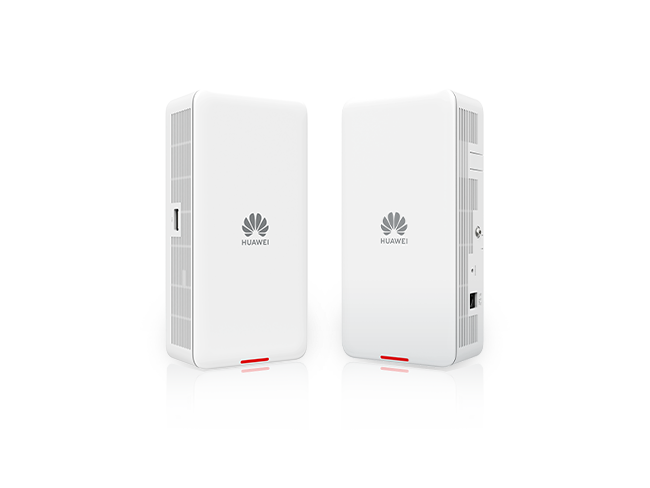

Huawei AirEngine 5773-23WP and AirEngine 5773-23W are next-generation Wi-Fi 7 wall plate access points designed to provide reliable indoor wireless coverage for environments such as dormitories, hotels, and other room-based deployment scenarios. Supporting simultaneous operation on 2.4 GHz and 5 GHz frequency bands with 2×2 MIMO on each band, the APs deliver a total of four spatial streams and a peak data rate of 3.57 Gbit/s. Built with Wi-Fi 7 innovations, they help improve wireless speed, network efficiency, and overall user experience across high-demand indoor spaces. Their wall plate design makes them well suited for flexible in-room deployment, helping organizations provide stable, efficient, and future-ready wireless access for users.
| Parameters | AirEngine 5773-23WP | AirEngine 5773-23W |
| Dimensions (H x W x D) | 185 mm x 86 mm x 45 mm | 175 mm x 86 mm x 45 mm |
| Power Input | DC: 43.2 V to 57.6 V PoE power supply: in compliance with 802.3bt/at/af | DC: 12V±10% PoE power supply: in compliance with 802.3at/af |
| Operating Temperature | 0°C to +40°C | 0°C to +40°C |
| Antenna Type | Built-in smart antennas | Built-in smart antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2, 5 GHz: 2×2:2 | 2.4 GHz: 2×2:2, 5 GHz: 2×2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax/be | 802.11a/b/g/n/ac/ac Wave 2/ax/be |
| Maximum Rate | 3.57 Gbit/s | 3.57 Gbit/s |
