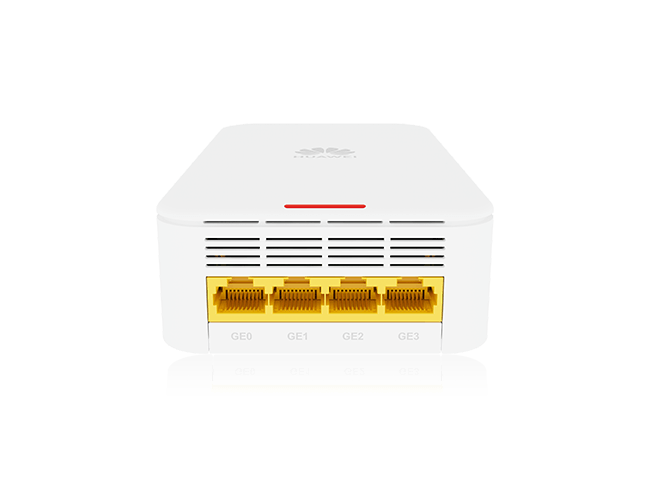

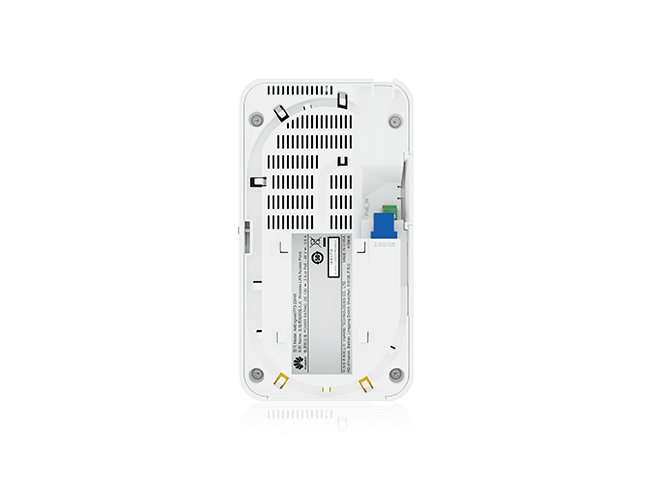

Huawei AirEngine 5773-23HW is a next-generation Wi-Fi 7 wall plate access point designed to provide reliable and high-performance indoor wireless coverage. Supporting simultaneous operation on 2.4 GHz and 5 GHz frequency bands with 2×2 MIMO on each band, the AP delivers a total of four spatial streams and achieves a device rate of up to 3.57 Gbps. Powered by advanced Wi-Fi 7 technologies, it helps improve network speed, efficiency, and user experience across modern indoor environments. The AirEngine 5773-23HW also supports hybrid cables and a simplified architecture solution, enabling flexible deployment, reducing installation complexity, and helping protect customer investment. These features make it well suited for SMB workplaces, higher education institutions, hospitals, and other indoor coverage scenarios that require stable, efficient, and future-ready wireless connectivity.
Dual-band co-planar smart antennas suppress interference automatically and double signal strength, realizing high-quality wireless coverage with zero blind spots.
Multi-Link Operation (MLO) and Multiple Resource Unit (MRU) make data transmission more efficient and orderly. The 4096-QAM is supported, providing a total of 4 spatial streams and achieving a device rate of up to 3.57 Gbps.
The uplink optical port allows for the use of a hybrid cable (optical-electrical separation), and supports data transmission and PoE power supply over an ultra-long distance of up to 2 km. Also, the AP has a built-in bottom-layer optical module, supporting plug-and-play optical fibers. No external optical module is required.
| Dimensions (H x W x D) | 160 mm x 86 mm x 38 mm |
Power Input | DC: 12 V ± 10% |
PoE-powered via the Phoenix connector of a hybrid cable: In compliance with 802.3at/af. | |
Maximum Number of Users | 1200 (600 per radio) |
Note: The actual number of users varies according to the environment. | |
| Operating Temperature | 0–40°C |
| Antenna Type | Built-in smart antennas |
| MIMO Performance | 2.4 GHz: 2×2; 5 GHz: 2×2 |
| Radio Protocol | 802.11a/b/g/n/ac/ax/be |
| Maximum Rate | 3.57 Gbps |
