Huawei AirEngine 5773-23H is a next-generation indoor access point designed to deliver reliable and high-performance wireless connectivity through Wi-Fi 7 technology. Supporting simultaneous operation on 2.4 GHz and 5 GHz frequency bands with 2×2 MIMO on each band, the AP provides a total of four spatial streams and achieves a device rate of up to 3.57 Gbps. Powered by new Wi-Fi 7 innovations, it helps improve network speed, efficiency, and overall user experience across indoor environments. The AirEngine 5773-23H also supports hybrid cables and a simplified architecture solution, enabling more flexible deployment while helping customers reduce complexity and protect infrastructure investment. These capabilities make it well suited for SMB workplaces, higher education institutions, hospitals, and other indoor coverage scenarios that require stable, efficient, and future-ready wireless access.
Dual-band co-planar smart antennas suppress interference automatically and double signal strength, realizing high-quality wireless coverage with zero blind spots.
Multi-Link Operation (MLO) and Multiple Resource Unit (MRU) make data transmission more efficient and orderly. The 4096-QAM is supported, providing a total of 4 spatial streams and achieving a device rate of up to 3.57 Gbps.

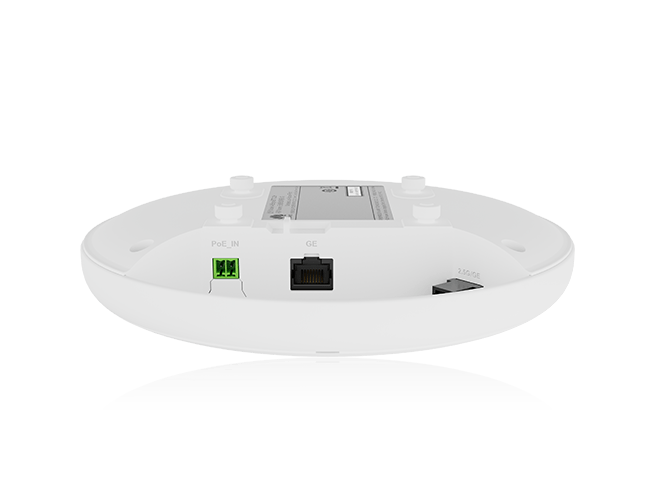

The uplink optical port allows for the use of a hybrid cable (optical-electrical separation), and supports data transmission and PoE power supply over an ultra-long distance of up to 2 km. Also, the AP has a built-in bottom-layer optical module, supporting plug-and-play optical fibers. No external optical module is required.
| Dimensions (D x H) | 180 mm x 35 mm |
| Power Input | PoE-powered via the Phoenix connector of a hybrid cable: In compliance with 802.3at/af. |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in smart antennas |
| MIMO Performance | 2.4 GHz: 2×2; 5 GHz: 2×2 |
| Radio Protocol | 802.11a/b/g/n/ac/ax/be |
| Maximum Rate | 3.57 Gbps |
