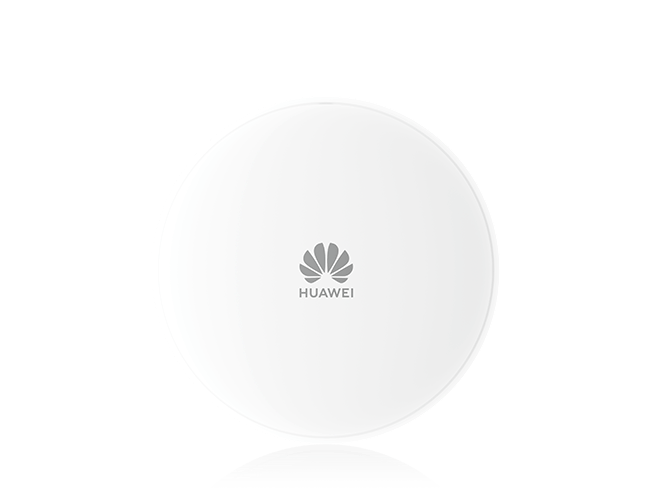

Huawei AirEngine 5773-22P is a next-generation indoor access point designed to provide reliable and high-performance wireless connectivity through Wi-Fi 7 technology. Supporting simultaneous services on 2.4 GHz and 5 GHz frequency bands with 2×2 MIMO on each band, the AP delivers a total of four spatial streams and achieves a device rate of up to 3.57 Gbps. Powered by advanced Wi-Fi 7 innovations, it helps improve network speed, efficiency, and overall wireless user experience across modern indoor environments. With its compact size, the AirEngine 5773-22P supports flexible deployment and helps customers optimize infrastructure investment. These features make it well suited for SMB workplaces, higher education institutions, hospitals, and other indoor coverage scenarios that require stable, efficient, and future-ready wireless access.
Dual-band co-planar smart antennas suppress interference automatically and double signal strength, realizing high-quality wireless coverage with zero blind spots.
Multi-Link Operation (MLO) and Multiple Resource Unit (MRU) make data transmission more efficient and orderly. The 4096-QAM is supported, providing a total of 4 spatial streams and achieving a device rate of up to 3.57 Gbps.

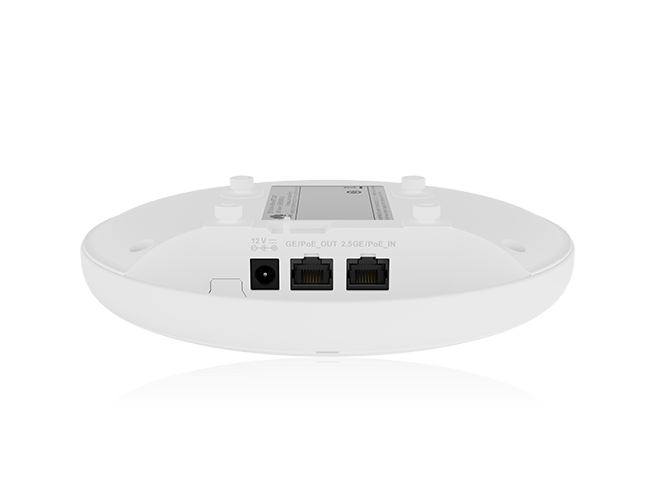

PoE Out supplies power to low-energy PoE devices, saving local power supply and power cables.
| Dimensions (D x H) | 180 mm x 35 mm |
Power Input | DC: 12 V ± 10% |
PoE power supply: In compliance with 802.3at/af. | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in smart antennas |
| MIMO Performance | 2.4 GHz: 2×2; 5 GHz: 2×2 |
| Radio Protocol | 802.11a/b/g/n/ac/ax/be |
| Maximum Rate | 3.57 Gbps |
