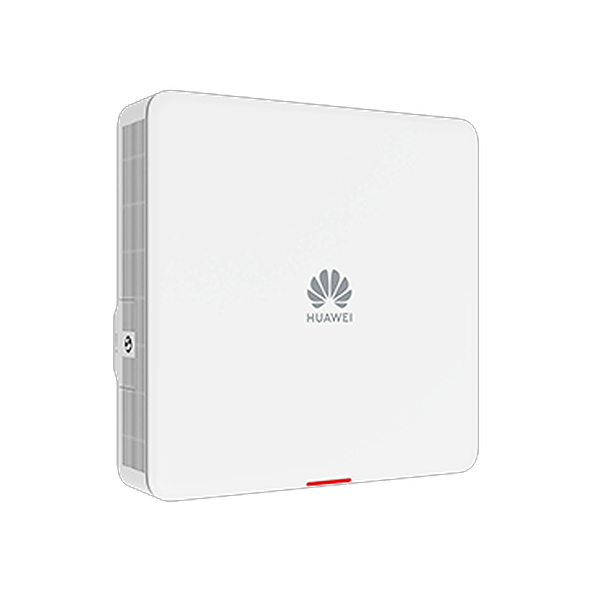

Huawei AirEngine 5773-21HW is a Wi-Fi 7 wall plate access point designed to provide reliable and high-performance indoor wireless coverage for environments such as dormitories, hotels, and other room-based deployment scenarios. Supporting both 2.4 GHz and 5 GHz frequency bands with 2×2 MIMO on each band, the AP offers up to four spatial streams and delivers data rates of up to 3.57 Gbps. Powered by Wi-Fi 7 innovations, it helps improve wireless speed, network efficiency, and the overall user experience across modern indoor spaces. The AirEngine 5773-21HW also supports Huawei’s Passive Ethernet Network Solution, enabling direct fiber connections to the PEN passive aggregation module for more flexible deployment and reduced customer investment. With its wall plate design, strong wireless performance, and simplified fiber-based deployment capability, it is an ideal choice for indoor coverage in dormitories, hotels, and similar high-density accommodation environments.
Dual-band co-planar smart antennas suppress interference automatically and double signal strength, realizing high-quality wireless coverage with zero blind spots.
With 4096-QAM and four spatial streams, the AP supports data rates of up to 3.57 Gbps. It also delivers smoother and more efficient data transmission through Multi-Link Operation (MLO).
The AP features one 2.5GE optical uplink port (compatible with Ethernet and PEN optical modules) and four GE electrical downlink ports for seamless wired expansion.
| Dimensions (H x W x D) | 185 mm x 185 mm x 42 mm |
| Power Input | DC: 12 V ± 10% |
Maximum Power Consumption | 12.6 W |
Note: The actual maximum power consumption depends on local laws and regulations. | |
| Operating Temperature | 0°C to +40°C |
| Antenna Type | Built-in smart antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2, 5 GHz: 2×2:2 |
| Radio Protocol | 802.11a/b/g/n/ac/ax/be |
| Maximum Rate | 3.57 Gbps |
