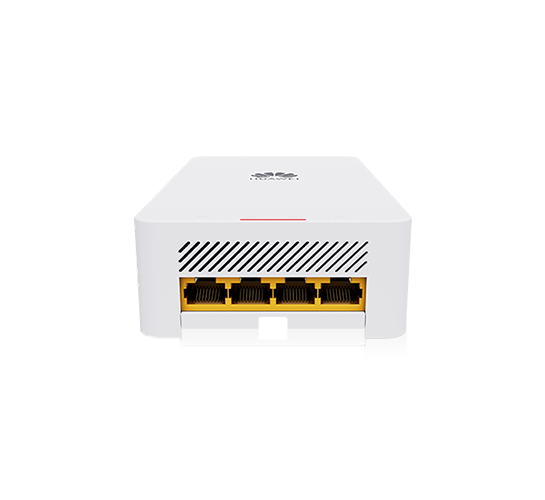

Huawei AirEngine 5762C-17W-V2 is an indoor Wi-Fi 6 access point designed to provide stable, high-performance wireless connectivity for indoor coverage environments. Compliant with the Wi-Fi 6 standard, it simultaneously supports 2.4 GHz and 5 GHz frequency bands and delivers a data rate of up to 2.975 Gbps. Equipped with smart antennas, the AP helps improve signal quality, enhance coverage, and support a more reliable wireless experience for users. Its multiple downlink ports also provide flexible wired access options to meet diversified connectivity needs. These features make AirEngine 5762C-17W-V2 well suited for hotels, hospitals, dormitory rooms, and other indoor spaces that require efficient wireless and wired network access.
| Dimensions (H x W x D) | 160 mm x 86 mm x 38 mm |
| Power Input | PoE power supply: in compliance with IEEE 802.3af |
Maximum Power Consumption | 9.4 W |
Note: The actual maximum power consumption depends on local laws and regulations. | |
| Operating Temperature | 0°C to +40°C |
| Antenna Type | Built-in smart antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2, 5 GHz: 2×2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 2.975 Gbps |
