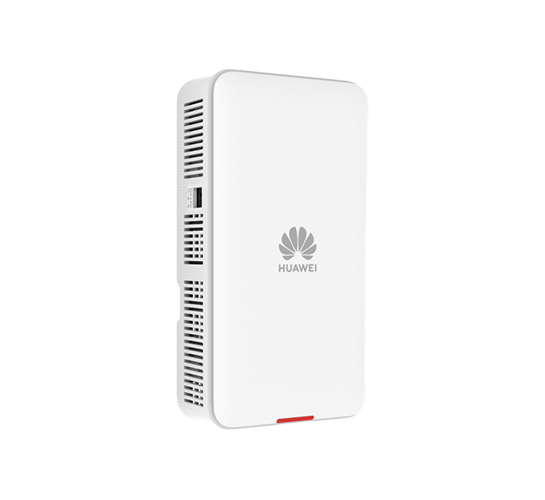

Huawei AirEngine 5762-13W is a compact Wi-Fi 6 wall plate access point designed to provide reliable and efficient wireless connectivity for indoor coverage scenarios. Supporting 2×2 MIMO and simultaneous services on both 2.4 GHz and 5 GHz frequency bands, the AP delivers a data rate of up to 2.975 Gbit/s to support high-bandwidth applications and high-concurrency user access. Its compact wall plate design enables flexible deployment while helping reduce infrastructure investment costs, making it suitable for small and medium-sized enterprises, hospitals, cafés, and other indoor environments that require stable, space-saving, and high-performance wireless access.
Featuring Multi User Multiple-Input Multiple Output (MU-MIMO) and Orthogonal Frequency Division Multiple Access (OFDMA) technologies for efficient data transmission, plus the 1024 Quadrature Amplitude Modulation (QAM) scheme, four spatial streams, and an air interface rate of up to 2.975 Gbit/s.
Dual-band co-planar Smart Antennas suppress interference automatically, double signal strength at the same location, and provide 20% greater coverage distance, realizing high-quality wireless coverage with zero blind spots.
Huawei’s cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs.
| Dimensions (H x W x D) | 160 mm x 86 mm x 38 mm |
Power Input | DC: 12 V ±10% |
PoE power supply: In compliance with 802.3at/af | |
Note: When 802.3af power is supplied, the USB port and PSE are disabled. | |
Maximum Power Consumption | 12 W (excluding USB) |
Note: The actual maximum power consumption depends on local laws and regulations. | |
Maximum Number of Users | ≤ 256 |
Note: The actual number of users varies according to the environment. | |
| Operating Temperature | 0–40°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2 x 2:2; 5 GHz: 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 2.975 Gbit/s |
