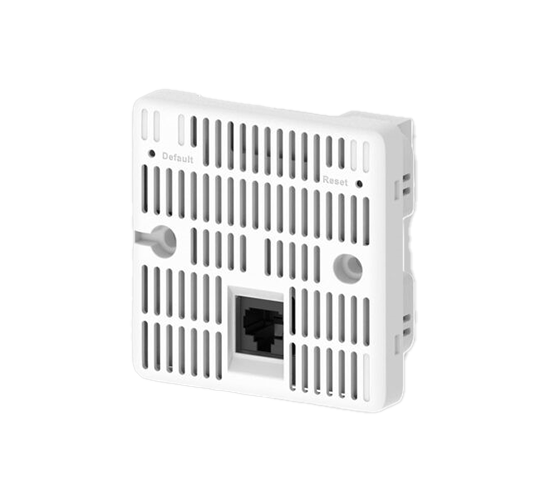

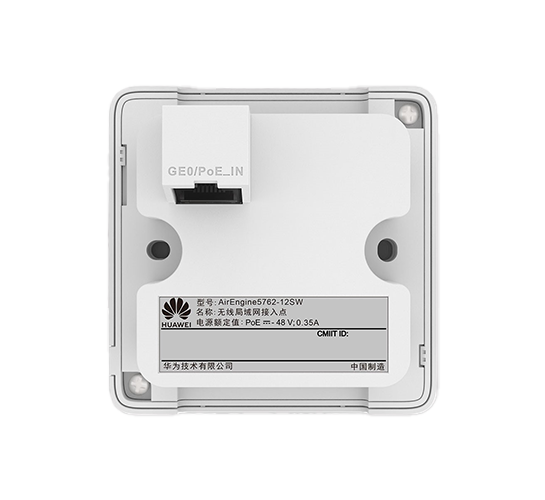

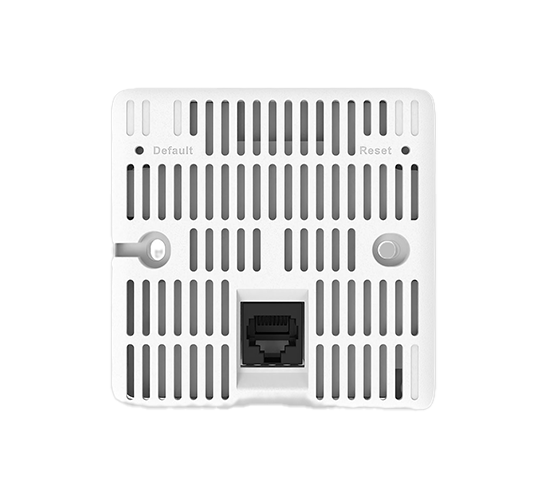

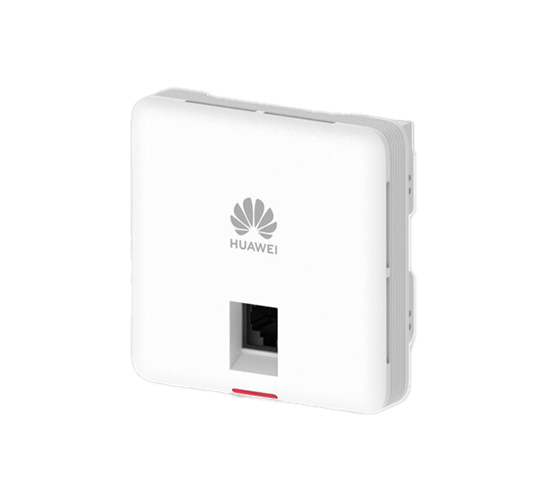

Huawei AirEngine 5762-12SW is a compact Wi-Fi 6 wall plate access point designed to provide reliable and high-performance wireless connectivity for hotels, personal homes, and other indoor coverage environments. Supporting 2×2 MIMO and simultaneous services on both 2.4 GHz and 5 GHz frequency bands, the AP delivers a rate of up to 2.975 Gbit/s to support high-bandwidth applications and high-concurrency user access. Its compact wall plate design enables flexible deployment while helping reduce infrastructure investment costs, making it a practical solution for spaces that require stable, efficient, and space-saving wireless access.
Easily blending into any decor with a compact size of just 86 x 86 mm and multiple covers to choose from.
Delivering services on both the 2.4 GHz and 5 GHz bands, with up to 160 MHz frequency bandwidth on the 5 GHz radio and a device rate of up to 2.975 Gbit/s.
Featuring easy deployment and installation within just 5 minutes.
| Dimensions (H x W x D) | 86 mm x 86 mm x 46 mm |
| Power Input | PoE power supply: In compliance with 802.3af. |
Maximum Power Consumption | 12. W (excluding USB) |
Note: The actual maximum power consumption depends on local laws and regulations. | |
Maximum Number of Users | ≤ 256 |
Note: The actual number of users varies according to the environment. | |
| Operating Temperature | 0–40°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2 x 2:2; 5 GHz: 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 2.975 Gbit/s |
