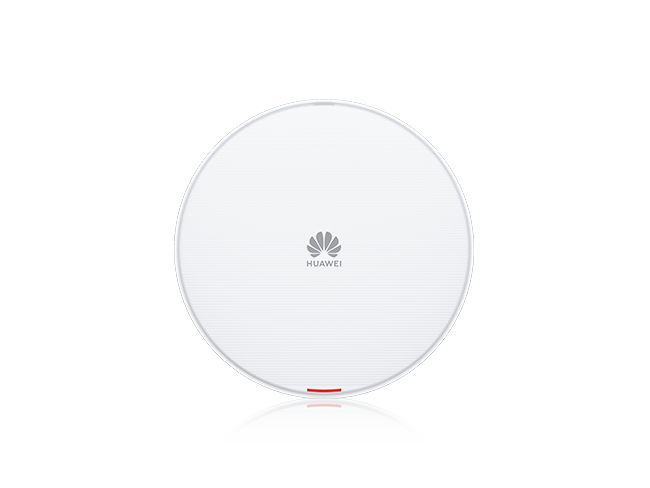

Huawei AirEngine 5762-12 is a Wi-Fi 6 indoor access point designed to provide high-performance wireless connectivity for small and medium-sized enterprises, hospitals, cafés, and other indoor environments. Supporting 2×2 MIMO and simultaneous services on both 2.4 GHz and 5 GHz frequency bands, the AP delivers a rate of up to 2.975 Gbit/s to support high-bandwidth applications and high-concurrency user access. Its compact design enables flexible deployment while helping organizations reduce infrastructure investment costs. With strong Wi-Fi 6 performance, efficient dual-band connectivity, and practical installation flexibility, AirEngine 5762-12 provides a reliable solution for modern indoor network requirements.
Featuring MU-MIMO and Orthogonal Frequency Division Multiple Access (OFDMA) technologies for efficient data transmission, plus 1024 Quadrature Amplitude Modulation (QAM), four spatial streams, and an air interface rate of up to 2.975 Gbit/s.
Dedicated spectrum resources are reserved for Very Important Person (VIP) users and applications based on slicing technology, ensuring an excellent service experience.
Huawei’s cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs.
| Dimensions (D x H) | 180 mm x 35 mm |
Power Input | DC: 12 V ±10% |
PoE power supply: In compliance with 802.3af. | |
Maximum Power Consumption | 11W |
Note: The actual maximum power consumption depends on local laws and regulations. | |
Maximum Number of Users | ≤ 256 |
Note: The actual number of users varies according to the environment. | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2 x 2:2; 5 GHz: 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 2.975 Gbit/s |
