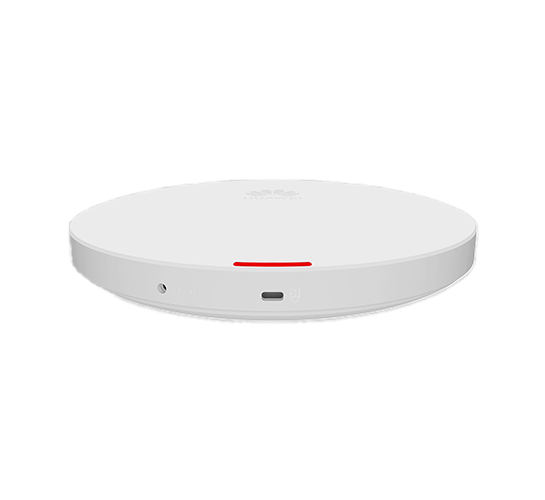

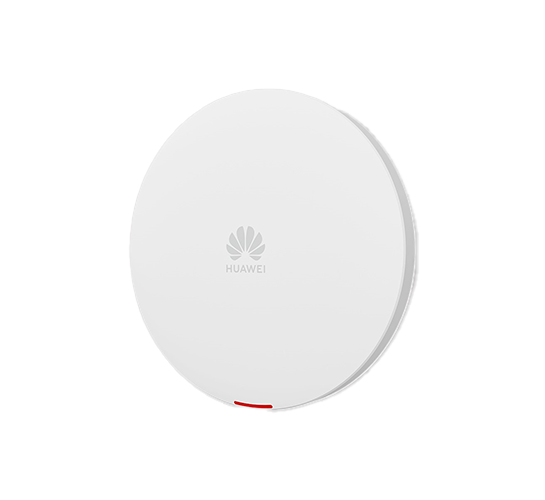

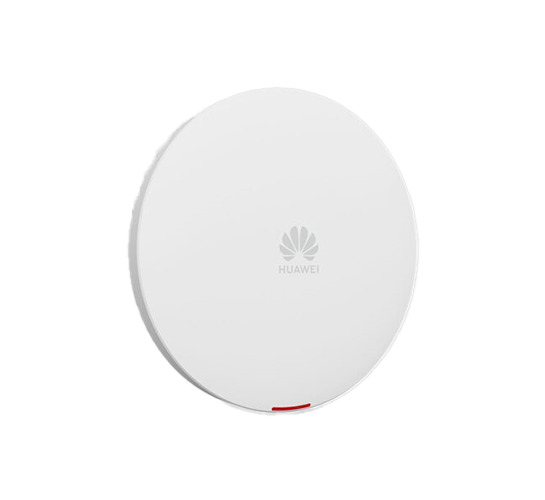

Huawei AirEngine 5762-10 is an indoor Wi-Fi 6 access point designed to provide reliable and efficient wireless connectivity for a wide range of indoor coverage scenarios. Supporting both 2.4 GHz and 5 GHz frequency bands with 2×2 MIMO, the AP delivers stable dual-band performance to meet the needs of modern users and connected devices. With its high bandwidth capability, high concurrency support, and compact design, AirEngine 5762-10 enables flexible deployment while helping organizations reduce infrastructure investment costs. These features make it well suited for SOHO enterprise offices, small and medium-sized hospitals, commercial real estate, budget chain hotels, primary and secondary schools, and other environments that require dependable indoor wireless coverage.
| Dimensions (D x H) | 180 mm x 35 mm |
Power Input | DC: 12 V ±10% |
PoE power supply: in compliance with IEEE 802.3af | |
Maximum Power Consumption | 11.2W |
Note: The actual maximum power consumption depends on local laws and regulations. | |
Maximum Number of Users | ≤ 256 |
Note: The actual number of users varies according to the environment. | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2; 5 GHz: 2×2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 2.975 Gbit/s |
