Huawei AirEngine 5761-12W is a next-generation Wi-Fi 6 wall plate access point designed to deliver reliable wireless connectivity for room-based indoor coverage scenarios. Equipped with built-in Smart Antennas and four spatial streams, the AP achieves data rates of up to 1.775 Gbit/s while helping improve signal quality, coverage, and user experience. Its wall plate design supports convenient deployment in environments such as hotels, hospitals, and dormitories, where stable and high-quality connectivity is required across individual rooms. With additional Power over Ethernet output support, AirEngine 5761-12W can also provide power for connected devices such as IP phones, helping simplify installation and support flexible network access.
Dual-band co-planar Smart Antennas suppress interference automatically, double signal strength, and provide 20% wider coverage, realizing high-quality wireless coverage with zero blind spots.

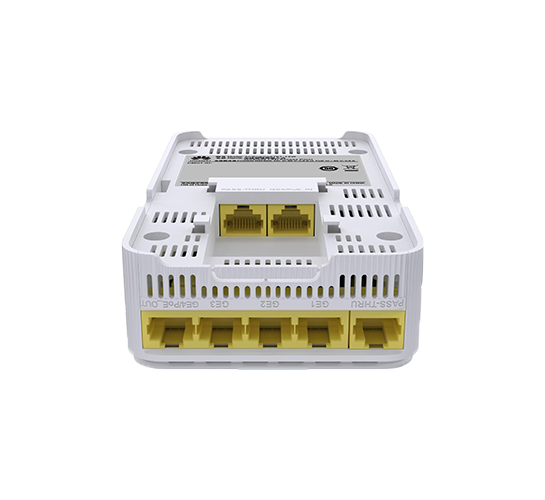

With 1 x GE electrical, 4 x GE downlink (one with PoE out support), and 2 x pass-through RJ45 ports (RJ11 compatible).
Huawei’s cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs.
| Dimensions (H x W x D) | 38mm×86mm×160mm |
Power Input | DC: 46–57 V |
PoE power supply: In compliance with 802.3at/af | |
Note: When 802.3af power is supplied, the USB port and PSE are disabled. | |
Maximum Power Consumption | 13.1 W (excluding USB, PoE out) |
Note: The actual maximum power consumption depends on local laws and regulations. | |
Maximum Number of Users | ≤ 1024 |
Note: The actual number of users varies according to the environment. | |
| Operating Temperature | 0–40°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2; 5 GHz: 2×2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | 1.775 Gbit/s |
