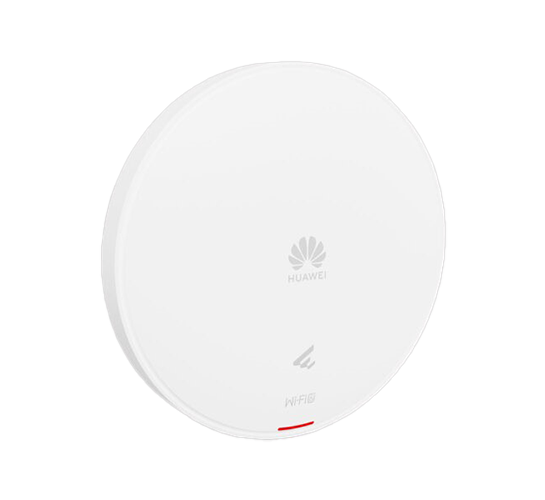

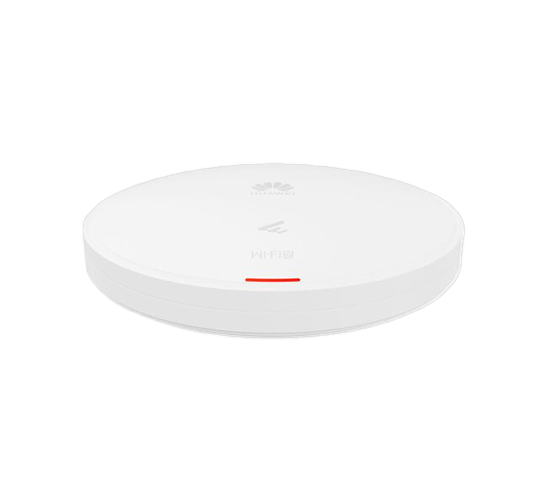

Huawei AirEngine 5761-12 Access Point is an indoor Wi-Fi 6 access point designed to provide reliable and efficient wireless connectivity for modern indoor environments. Built with a dual-radio design and four spatial streams, the AP delivers data rates of up to 1.775 Gbit/s to support stable network performance across daily business, education, and healthcare applications. Its built-in Smart Antennas allow Wi-Fi signals to follow users, helping maintain always-on coverage, improve signal quality, and provide a smoother user experience as people move within the coverage area. With its Wi-Fi 6 capabilities, intelligent coverage features, and dependable performance, AirEngine 5761-12 is well suited for SME offices, educational institutions, healthcare facilities, and other indoor spaces that require consistent and efficient wireless access.
Built-in, dual-band, co-planar Smart Antennas automatically suppress interference, double the signal strength at the same position, and provide 20% greater coverage distance, achieving high-quality wireless coverage with zero coverage holes.
Built-in dual Internet of Things (IoT) slots, a Universal Serial Bus (USB) port, and Bluetooth Low Energy (BLE) 5.2 enable one AP to adapt to multiple IoT protocols, such as Radio Frequency Identification (RFID) and ZigBee, meeting access requirements for a range of IoT terminals.
Huawei’s cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs.
| Dimensions (D x H) | 220 mm x 51 mm |
Power Input | DC: 12 V ±10% |
PoE power supply: In compliance with 802.3at. | |
Note: When 802.3af power is supplied, the USB port is disabled. | |
Maximum Power Consumption | 12.63 W (excluding USB) |
Note: The actual maximum power consumption depends on local laws and regulations. | |
Maximum Number of Users | ≤ 1024 |
Note: The actual number of users varies according to the environment. | |
| IoT | Built-in IoT slots (PCIe) |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2 x 2:2; 5 GHz: 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac Wave 2/ax |
| Maximum Rate | 1.775 Gbit/s |
