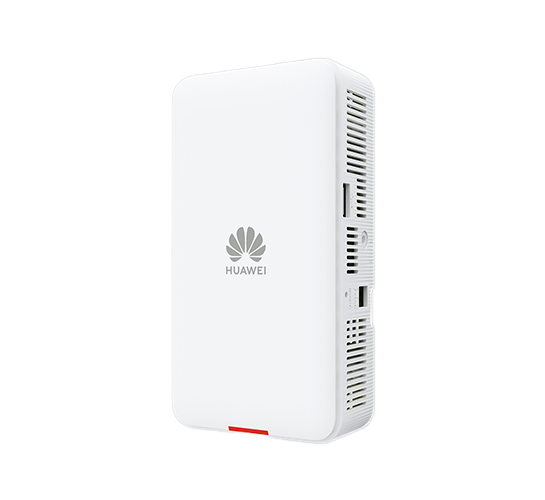

Huawei AirEngine 5761-11W is a next-generation Wi-Fi 6 wall plate access point designed to provide reliable, high-quality wireless connectivity for room-based indoor environments. Equipped with built-in Smart Antennas and four spatial streams, the AP delivers data rates of up to 1.775 Gbit/s while helping improve signal quality, coverage, and user experience. Its wall plate design makes it suitable for convenient deployment in hotels, hospitals, dormitories, and other environments that require stable wireless access across individual rooms. With its Wi-Fi 6 performance, intelligent antenna technology, and compact installation design, AirEngine 5761-11W supports high-bandwidth connectivity and dependable network experiences for modern indoor users.
Dual-band co-planar Smart Antennas suppress interference automatically, double signal strength, and provide 20% wider coverage, realizing high-quality wireless coverage with zero blind spots.

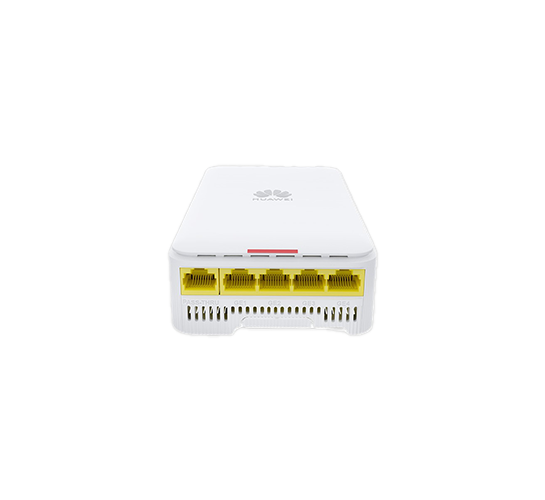

With 1 x GE electrical, 4 x GE downlink, and 2 x pass-through RJ45 ports (RJ11 compatible).
Huawei’s cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs.
| Dimensions (H x W x D) | 38 mm × 86mm × 160mm |
Power Input | DC: 12 V ±10% |
PoE power supply: In compliance with 802.3af | |
Note: When 802.3af power is supplied, the USB port and PSE are disabled. | |
Maximum Power Consumption | 12.7 W (excluding USB) |
Note: The actual maximum power consumption depends on local laws and regulations. | |
Maximum Number of Users | ≤ 1024 |
Note: The actual number of users varies according to the environment. | |
| Operating Temperature | 0–40°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2 x 2:2; 5 GHz: 2 x 2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | 1.775 Gbit/s |
