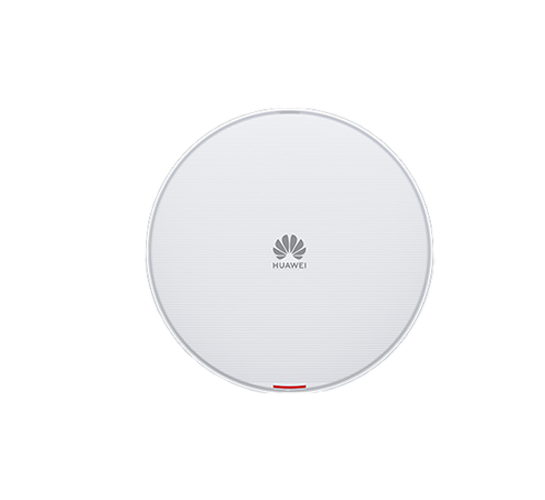

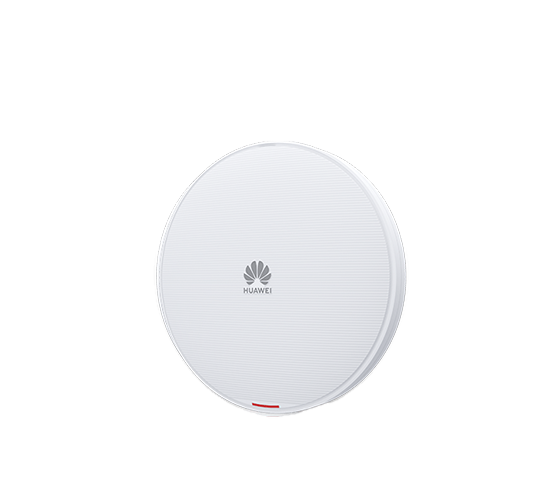

Huawei AirEngine 5761-11 is a next-generation indoor Wi-Fi 6 access point designed to provide reliable, high-quality wireless connectivity for modern indoor environments. Equipped with built-in Smart Antennas, the AP allows Wi-Fi signals to follow users, helping maintain always-on coverage, improve signal strength, and support a smoother connection experience. With 2×2 MIMO technology, it can simultaneously deliver services on both 2.4 GHz and 5 GHz frequency bands, achieving data rates of up to 1.775 Gbit/s. Built for scenarios that require high bandwidth and consistent network performance, AirEngine 5761-11 is well suited for small and midsize enterprise offices, hospitals, cafés, and other indoor spaces that require stable, efficient, and user-focused wireless access.
Featuring Multi-User Multiple-Input Multiple-Output (MU-MIMO) and Orthogonal Frequency Division Multiple Access (OFDMA) for efficient data transmission, plus 1024 Quadrature Amplitude Modulation (QAM), four spatial streams, and an air interface rate of up to 1.775 Gbit/s.
Dual-band co-planar Smart Antennas suppress interference automatically, double signal strength, and provide 20% wider coverage, realizing high-quality wireless coverage with zero blind spots.
Huawei’s cloud management platform simplifies the management of APs and services, reducing network Operations and Maintenance (O&M) costs.
| Dimensions (D x H) | 220 mm x 50 mm |
Power Input | DC: 12 V ±10% |
PoE power supply: In compliance with 802.3at/af. | |
Note: When 802.3af power is supplied, the USB port is disabled. | |
Maximum Power Consumption | 15.3 W (excluding USB) |
Note: The actual maximum power consumption depends on local laws and regulations. | |
Maximum Number of Users | ≤ 1024 |
Note: The actual number of users varies according to the environment. | |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO:Spatial Streams | 2.4 GHz: 2×2:2; 5 GHz: 2×2:2 |
| Radio Protocols | 802.11a/b/g/n/ac/ac wave2/ax |
| Maximum Rate | 1.775 Gbit/s |
